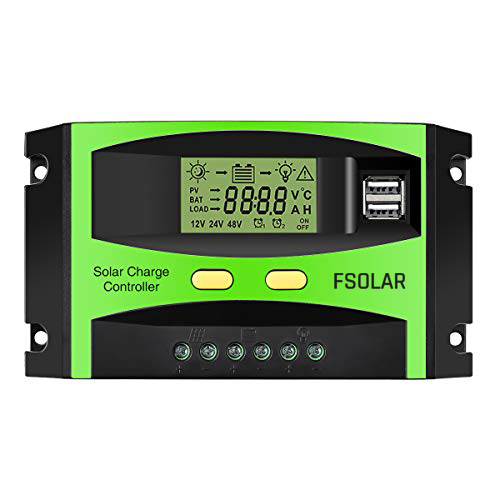

Fsolar 60A PWM Solar Charge Controller 12V/24V AUTO LCD Display

Safety 60 Amp PWM solar charge controller can automatically recognize 12V/24V, clear LED display, it is widely used in solar control systems. Specification: Model FSOLAR 60A System Voltage DC 12V/24V automatically switch The Max Voltage of The Solar Panel Input 50V (12V/24V) Self Los ≤13mA Max Charge Current 20A Max Discharge Current 20A LVD (9-11V), 21V (18-22V), 42V (36-44V) LVR 12.6V (11-13.5V), 25.2V (22-27V) Floating Voltage 13.8V (13-15V), 27.6V(26-30V) Increase the Charge 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V start extra charge for 2 hours Batterry overpressure protection 15V/30V Input Reverse Connection Protection Yes Load Over Current Protection Yes, every two seconds to restart Charging Mode PWM Temperature Compensation -24mV℃， -48mV℃， -96-mV℃， relative to 12V/24V system Operating Temperation -20℃- 55℃ Terminal Scale 28-10AWG Waterproof level IP 32 Product Size 195mm*107mm*59mm Weight 850g Features Automatic identification system voltage 12V/24V. Personalized LCD display and two-button operator and page. High-performance PWM three-stage charging. You can choose to load the control template and set the streetlights in the world at night. With overvoltage, short circuit, overload, overcharge, over-discharge protection. Accurate temperature compensation, correct charging, and discharging voltages automatically extend battery life. The default setting can be reset when the controller with the parameter set is powered off. The positive and negative terminals of the input terminal are reversely connected to protect. SKU: FSC 4016 Categories: PWM Solar Charge Controllers, Solar Charge Controllers
