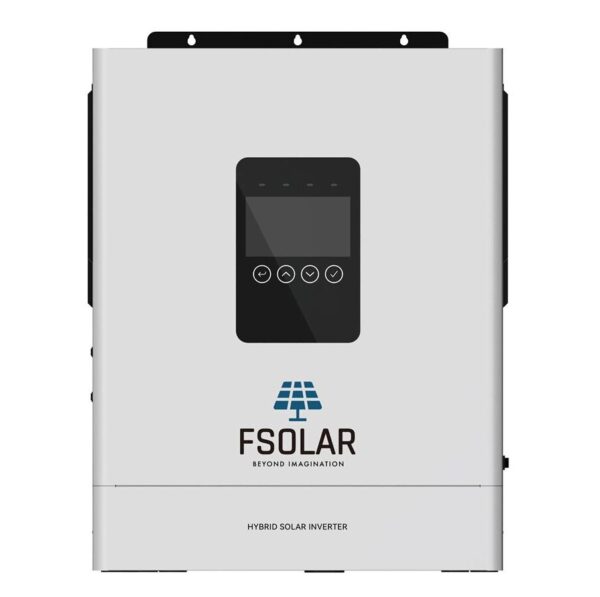

Fsolar Hybrid Solar Inverter 12KVA 48V With Dual MPPT 15KW

DOWNLOAD DATASHEET The FSOLAR Atlantic F12 Hybrid Solar Inverter represents the next generation of smart energy storage and distribution. Engineered to handle demanding loads, this powerful 12KVA unit boasts a surge capacity of 24KVA, making it ideal for starting heavy appliances without disruption. Its advanced Dual MPPT solar charger supports a maximum PV input current of 27A per tracker and an expansive operating voltage range of 60-450VDC, allowing for highly efficient energy harvest even in varying sunlight conditions. Designed for versatility, the Atlantic F12 integrates solar panels, the electrical grid, and backup generators into one intelligent ecosystem. Users can monitor real-time performance through the built-in WiFi interface and dedicated mobile app or web portal. The inverter features multiple communication ports (RS232/RS485/CAN) for deep integration with smart battery management systems. Housed in a compact, IP21-rated enclosure, it operates reliably in temperatures ranging from -10°C to 60°C, providing a robust “beyond imagination” power experience for any modern off-grid or hybrid installation. Technical Specifications Rated Capacity: 12KVA / 12KW (Power Factor: 1) Surge Power: 24KVA Battery Voltage: 48VDC (Supports Lithium and Lead-Acid) Solar Charger: Dual MPPTs with 15KW Max PV Input Power Max PV Open Circuit Voltage: 500VDC Max Charging Current: 160A (PV AC combined) Output Waveform: Pure Sine Wave Efficiency: Up to 94% in Battery Mode Monitoring: Built-in WiFi with LCD Display Dimensions: 540 x 425 x 140 mm (Net Weight: 15.2 KG)   SKU: FSI 1098 Categories: OFF-GRID Solar Inverters, Solar Inverters Brand: FSOLAR
