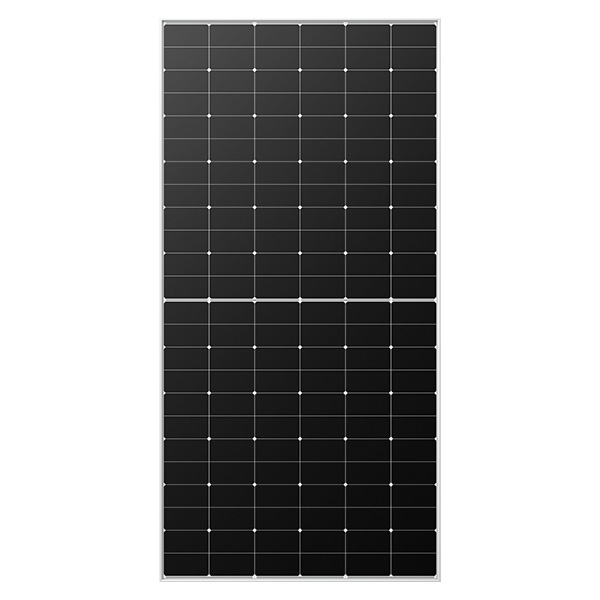

LONGi 540W Bifacial Solar Panel The LONGi 540W is a premium high-efficiency bifacial solar module specifically engineered for ultra-large power plants and demanding solar arrays. Built with advanced M10 Gallium-doped wafers and smart soldering 9-busbar half-cut cell technology, this panel significantly maximizes your energy capture. Its dual-glass bifacial design allows it to generate power from both the front and rear sides, providing a globally validated energy yield with a maximum module efficiency of 21.5%. Designed for long-term outdoor reliability, the LONGi 540W operates safely at lower temperatures while offering superior performance in harsh environments. The module is protected by dual 2.0mm heat-strengthened glass and a highly durable anodized aluminum alloy frame. It easily handles severe mechanical stress, supporting up to 5400Pa of front-side loading and 2400Pa of rear-side loading. Key technical specifications for this module include a maximum power output of 540W, an optimum operating voltage of 41.65V, and an optimum operating current of 12.97A. The panel is constructed with 144 cells, measuring 2256 by 1133 by 35 mm and weighing 32.3kg. It is rated for a maximum system voltage of 1500VDC and features an IP68-rated waterproof junction box for maximum safety and operational stability SKU: FSP 2065 Category: Solar Panels Brand: LONGI
